Provide high-tech measuring products and technical developments for instrument service providers

NDT and Photoelectric Measurements

產品詳情

Share to：

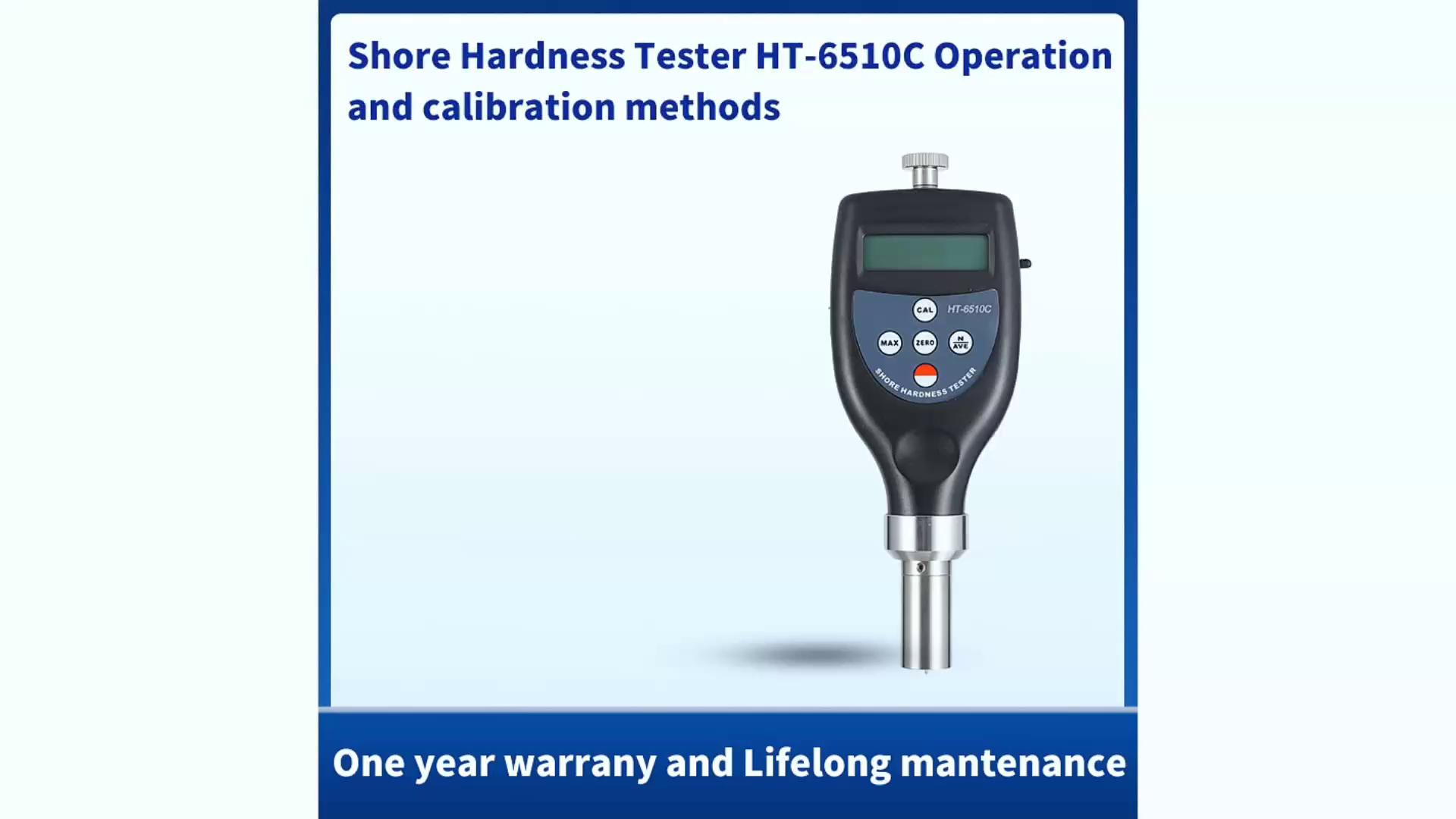

Shore Hardness Tester HT-6510C

Spec：	Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.
Model：	HT-6510C

產品詳情

　Features

* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Models & Applications　

Model	Indenter	Tested Materials	Hardness Value
A	0.79 Truncated Cone	Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc.	20 ~ 90 A
B	R 0.1 Cone	Middle Hard Rubber Materials, Typewriter Rollers, etc.	Above 90 A, Below 20 D
C	0.79 Truncated (Frustum) Cone	Plastics and Middle Hard Rubber Materials	Above 90 B, Below 20 D
D	R 0.1 Cone	Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc.	Above 90 A
DO	R 1.2 Spherical Radius	Plastics and Middle Hard up to Hard Rubber Materials	Above 90 C, Below 20 D
O	R 1.2 Spherical Radius	Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon	Below 20 DO
OO	R 1.2 Spherical Radius	Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials	Below 20 O
E	R 2.5 Spherical Radius	Hard Sponge, EVA	Above 90 DO, Below 20 D

Specifications

Model	HT-6510(A/B/C/D/E/O/DO/OO)
Parameters	Tested Result/Mean Value/Max.Value
Unit	HA/HB/HC/HD/HE/HDO/HO/HOO
Display Range	0HA~100HA(HB/HC/HD/HE/HDO/HO/HOO)
Measurement Range	10HA~90HA(HB/HC/HD/HE/HDO/HO/HOO)
Accuracy	≤±1H
Resolution	0.1H
Battery Indicator	Low Battery Indicator
Auto Switch Off	√
Operating	Temperature:0oC~50oC Humidity:<80%RH
Power Supply	4x1.5V AAA(UM-4)Battery
Power Supply	2x1.5V AAA(UM-4)Battery(Stand Available)
Dimensions	162mmx65mmx28 mm
Weight	170g
Standard Accessories	Main Unit
	Pin Length Teat Block
	Carrying Case(B04)
	Operation Manual
Optional Accessories	Shore Hardness Tester Measurement Stand
	Rubber Hardness Test Block(A/D Type)
	USB Data Cable with Software
	Bluetooth Data Adapter with Software

Model & Hardness　

　Downloads

　ShoreHardnessTester_HT-6510C_Catalog

　HT-6510C_EN_Manual

　RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
